GOBEL EPOQUE AEON BAFORCE CONTROLLER

12.100,00

Filtro activo para subwoofers.

El Epoque Aeon Baforce Controller es la elección para la mejor reproducción de subgraves. Para lograr la máxima calidad de sonido, resolución y velocidad sin ningún tipo de pérdida, diseñamos nuestro Epoque Aeon Baforce Controller completamente analógico. Nuestro objetivo supremo de diseño no era escuchar el crossover / controlador en la ruta de la señal.

SKU: GOBEL EPOQUE BAFORCE CONTROLLER Categoría:

Epoque Baforce

Epoque Aeon Baforce Controller


El producto estrella Epoque Aeon Baforce Controller establece la máxima referencia para crossovers / controladores de subwoofers activos.

El Epoque Aeon Baforce Controller es la elección para la mejor reproducción de subgraves. Para lograr la máxima calidad de sonido, resolución y velocidad sin ningún tipo de pérdida, diseñamos nuestro Epoque Aeon Baforce Controller completamente analógico. Nuestro objetivo supremo de diseño no era escuchar el crossover / controlador en la ruta de la señal.

Debido a su diseño completamente simétrico, el Epoque Aeon Baforce Controller evita por completo las interferencias desde el principio y logra una calidad de sonido aún mayor.

Estos componentes electrónicos de control / crossover / control completamente analógicos y simétricos están alojados en una carcasa sin compromiso que se fresa de un bloque completo de una aleación específica. De esta manera obtenemos un control perfecto sobre EMI, dispersión de calor, ausencia de campos magnéticos interferentes y un comportamiento de resonancia ideal del sistema completo.

Además, la fuente de alimentación discreta de gran tamaño garantiza siempre las condiciones de trabajo absolutamente estables de nuestro Epoque Aeon Baforce Controller, sin importar a qué nivel.

Epoque Aeon Baforce Controller


The flagship product Epoque Aeon Baforce Controller sets the ultimate benchmark for active subwoofers crossovers / controllers.

The Epoque Aeon Baforce Controller is the choice for the ultimate sub-bass reproduction. In order to achieve a maximum sound quality, resolution and velocity without any looses, we designed our Epoque Aeon Baforce Controller completely analog. Our supreme design goal was, not to hear the crossover / controller in the signal path.

Because of the completely symmetrical design, the Epoque Aeon Baforce Controller totally avoids interferences from the outset and reaches hereby an even higher sound quality.

These completely analog and symmetrical crossover / controller electronics are housed in a non-compromise enclosure which is milled out of a full block of a specific aluminum alloy. Hereby we get perfect control over EMI, heat dispersion, freedom from magnetic interfering fields and an ideal resonance behavior of the complete system.

Additionally the massively oversized discrete power supply always ensures the absolute stable working conditions of our Epoque Aeon Baforce Controller, no matter at which level.

Featured Technologies


Throughout Analog Controller

Our ultimate Epoque Aeon Baforce Controller is a highest end active crossover / controller, which is specifically designed completelly analog with the best possible parts available. Only through our completelly analog design you will get the best possible sound quality, resolution and velocity as we hereby have no looses or latancies based on A/D conversion, DSP processing, and D/A conversion.

throughout analog controller

Completely Symmetrical

Additionally our crossover / controller is designed completely symmetrically, in order to get even more freedom from interferences and therefore an even higher sound quality. Our supreme design goal was, not to hear the crossover / controller in the signal path and we are sure that we reached it!

completely symmetrical

Massively Oversized Power Supply

The massively oversized high end power supply can shortly deliver few times higher peak current as will need at maximum level. Additionally In order to even lower the interferences, we designed the enclosure so the power supply has it’s own shielded chamber and doesn’t effect the analog section. Hereby the noise floor is again shifted to the lowest potential possible and even the smallest dynamic impulses will be reproduced with unbelivable velocity and precision.

massively oversized power supply

Totally EMI and resonance proof controller enclosure

Our completely analog and symmetrical crossover / controller electronic is housed in a non-compromise enclosure which is milled out of a full block of a specific aluminum alloy. Hereby we get perfect control over many things. For example avoiding EMI, the ideal heat dispersion, the freedom from magnetic interfering fields, an ideal resonance behavior of the complete system, …

Totally EMI and resonance proof controller enclosure

Technical Specifications


Principle

Active Subwoofer Crossover / Controller

Technical design

Completely Analog and Symmetrical
2 Outputs for connecting up to 2 Subwoofers simultaneously

Standart finishes

Lacquer anodized in natural silver semi gloss
Lacquer anodized in dark space grey semi gloss

Adjustable parameters of the controller

– Level (stepless adjustable)
– Low Frequency CUT OFF: 15 Hz – 35 Hz (stepless adjustable)
– Low Frequency CUT OFF Q-SELECTION: 0,7 – 4 (stepless adjustable)
– High Frequency CUT OFF: 50 Hz – 100 Hz (stepless adjustable)
– PHASE: 0°, 180°
– Low Frequency CUT OFF for the MAIN-OUT: Linear, 50 Hz, 80 Hz

Dimensions

32 cm width x 22 cm depth x 5,4 cm height

Weight

6 Kg without packaging

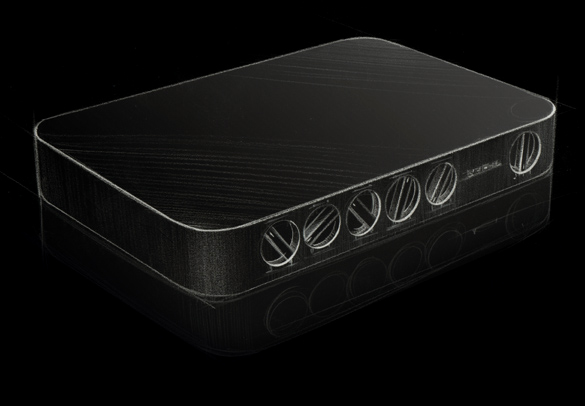

baforce controller strich

Standard Finishes Enclosure


baforce controller light

Lacquer anodized in natural silver semi gloss

baforce controller dark

Lacquer anodized in dark space grey semi gloss

All color finishes are possible on extra charge

Especificaciones técnicas

Principio

Crossover/controlador de subwoofer activo

Diseño técnico

Completamente analógico y simétrico
2 salidas para conectar hasta 2 subwoofers simultáneamente

Acabados estándar

Laca anodizada en plata natural semi brillo
Laca anodizada en gris espacial oscuro semibrillante

Parámetros ajustables del controlador

– Nivel (ajustable sin escalones)
– CORTE de baja frecuencia: 15 Hz – 35 Hz (ajustable sin escalones)
– SELECCIÓN Q DE CORTE DE BAJA FRECUENCIA: 0,7 – 4 (ajustable de forma continua)
– CORTE de alta frecuencia: 50 Hz – 100 Hz (ajustable sin escalones)
– FASE: 0°, 180°
– CORTE de Baja Frecuencia para MAIN-OUT: Lineal, 50 Hz, 80 Hz

Dimensiones

32 cm ancho x 22 cm fondo x 5,4 cm alto

Peso

6 kg sin embalaje

Marca

Göbel High End
